R1
Efficient trailLight, balanced assistance for long trail days.
250W Motor85 Nm Torque48.3 lb Weight
View R1 →Carbon electric mountain bikes
Own the
Ridgeline.
A focused carbon e-MTB lineup built around real trail performance—light where it matters, powerful when the grade turns up.
250WR1 / RX1500WR2 / RX22Frame sizes10Paint choices
Choose your ride
Four bikes.
One clear purpose.
Start with the agile 250W platform or step up to 500W and 140 Nm. Choose RX for Wheeltop EDS OX-12S Bluetooth electronic shifting.
$3,495

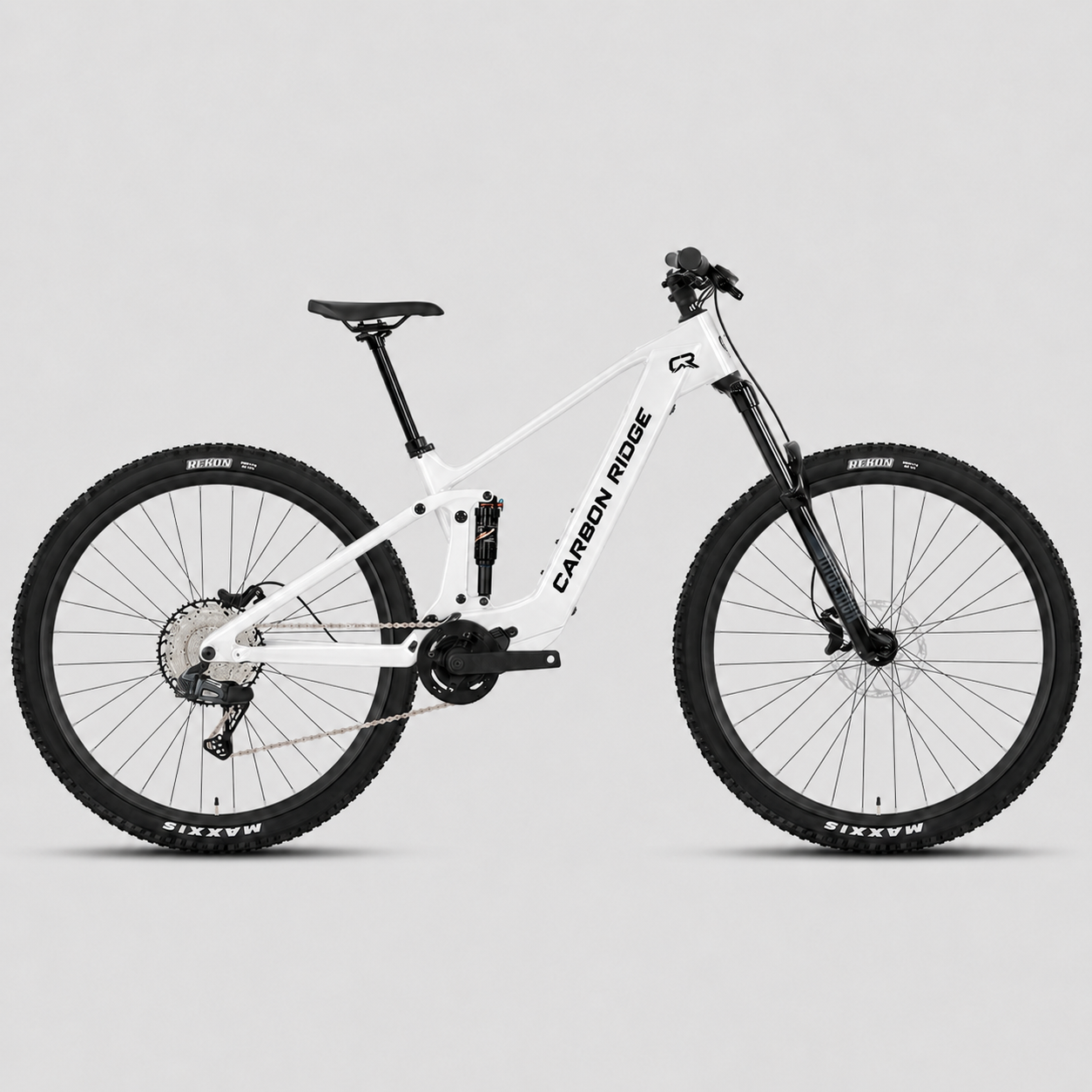

RX1
Connected trailThe lighter platform with Wheeltop Bluetooth shifting.
250W Motor85 Nm Torque48.3 lb Weight
View RX1 →

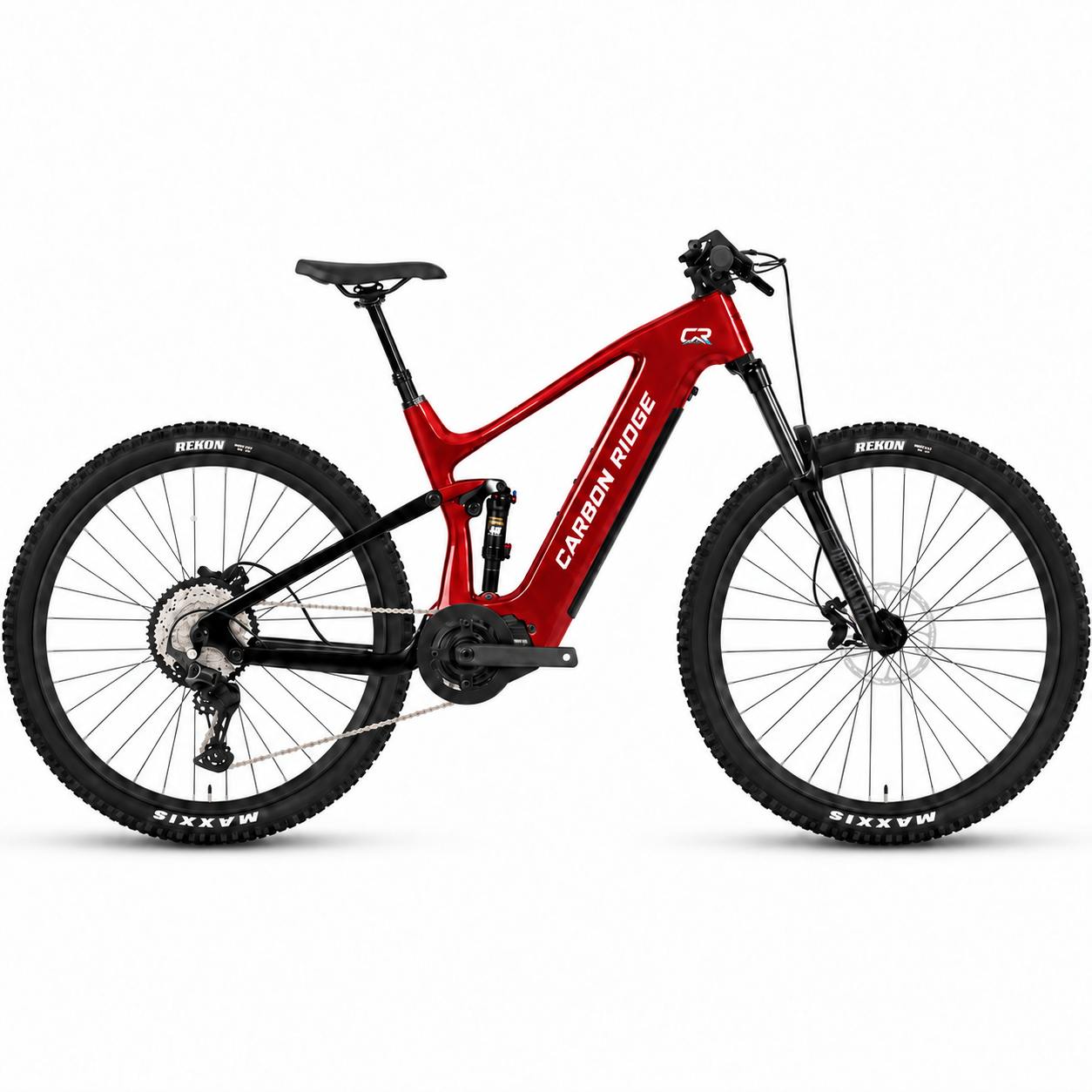

R2
High-torque trailSerious climbing support without connected electronics.
500W Motor140 Nm Torque53.4 lb Weight
View R2 →

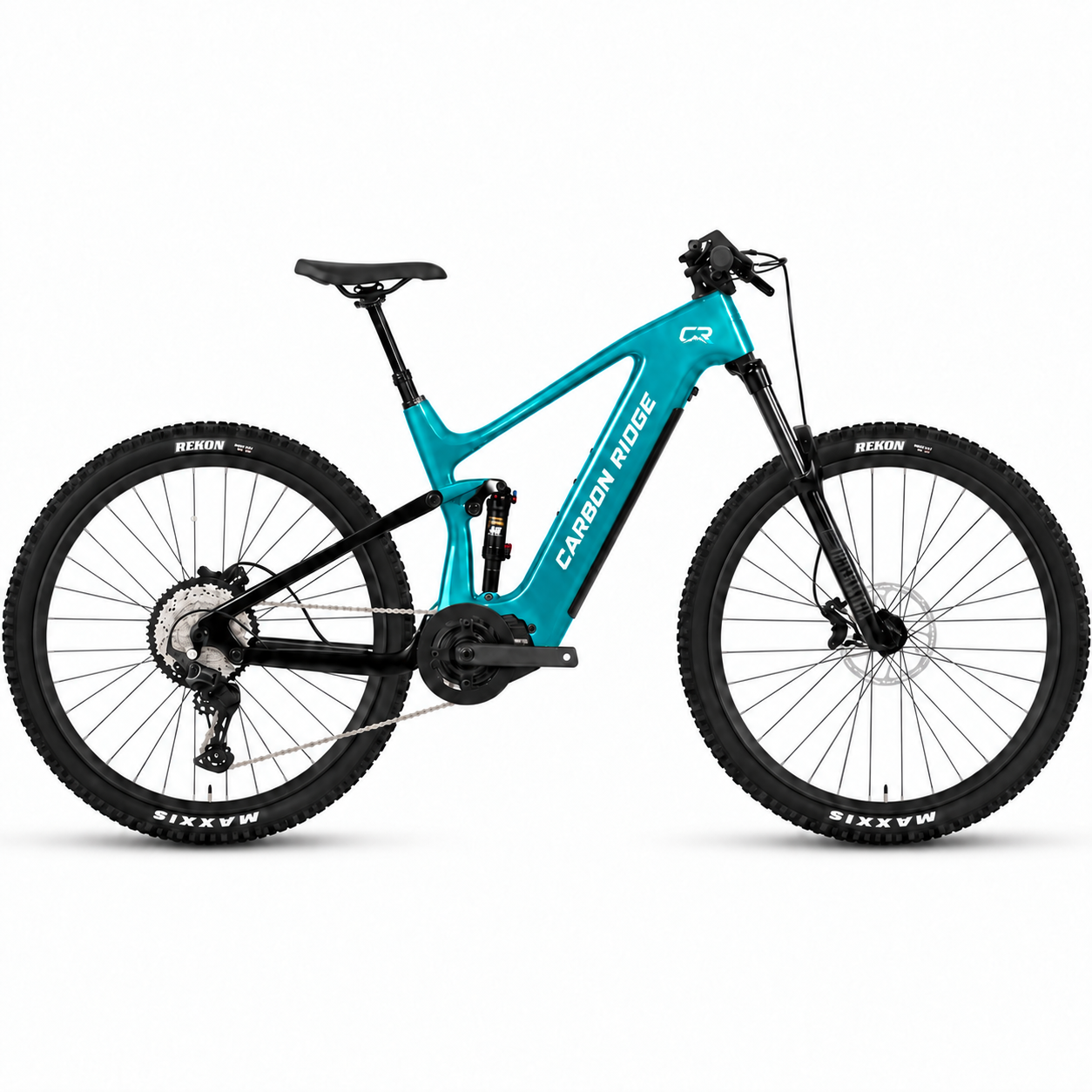

RX2
Connected high torqueMaximum assistance with Wheeltop Bluetooth shifting.
500W Motor140 Nm Torque53.4 lb Weight
View RX2 →Premium trail hardware
Built around the parts that matter.
Every Carbon Ridge model shares the same premium foundation. R models use dependable Shimano Deore mechanical shifting; RX models upgrade to Wheeltop EDS OX-12S Bluetooth electronic shifting.
Compare platforms
01Carbon FiberFull-suspension frame
02RockShoxFront + rear suspension
0312-Speed ShiftingShimano Deore R · Wheeltop EDS OX-12S RX
04Tektro M5354-piston · 203mm
05Samsung Cells720Wh battery
06Two SizesS/M + Large
Interactive paint studio
Built to ride.
Finished for you.
Choose a finish below to preview it on the same bike. Black, red and graphite are included. Carbon Ridge Signature Colors add $250; a true customer-chosen color adds $450.
Selected finishFluorescent PinkSignature · +$250
Final paint will be matched and approved before production.
Digital paint preview. Final finish sample supplied before order.
At a glance
Find your Carbon Ridge.
| Model | Power | Torque | Battery | Weight | Shifting | Price |
|---|---|---|---|---|---|---|
| R1 → | 250W | 85 Nm | 720Wh | 48.3 lb | Shimano Deore M6100 | $3,495 |
| RX1 → | 250W | 85 Nm | 720Wh | 48.3 lb | Wheeltop EDS OX-12S Bluetooth | $3,995 |
| R2 → | 500W | 140 Nm | 720Wh | 53.4 lb | Shimano Deore M6100 | $3,995 |
| RX2 → | 500W | 140 Nm | 720Wh | 53.4 lb | Wheeltop EDS OX-12S Bluetooth | $4,495 |
Peak torque is rated at 85 Nm on the 250W platform and 140 Nm on the 500W platform. Final production specifications remain subject to verification.
Fit + geometry
A confident fit.
Before the first ride.

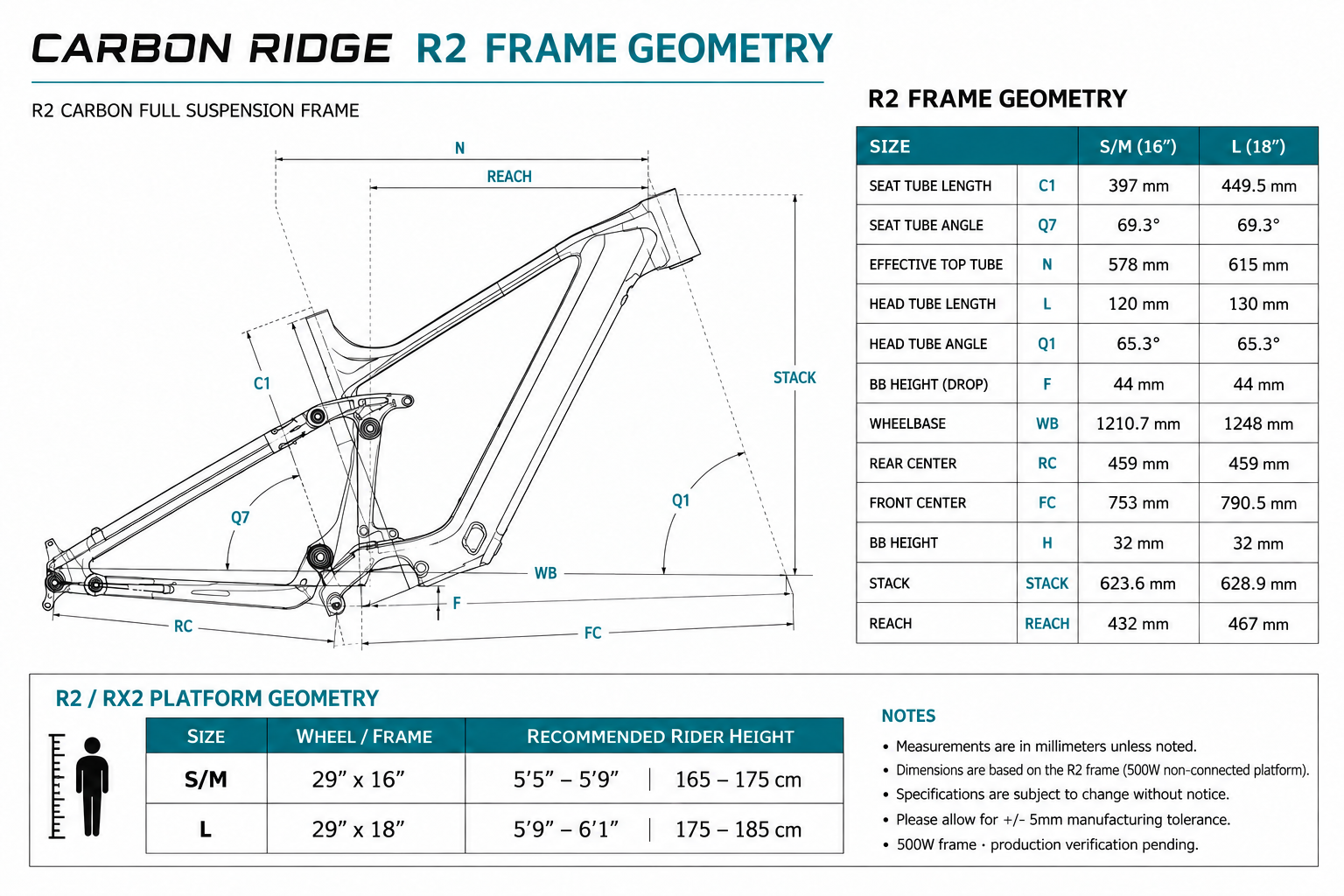

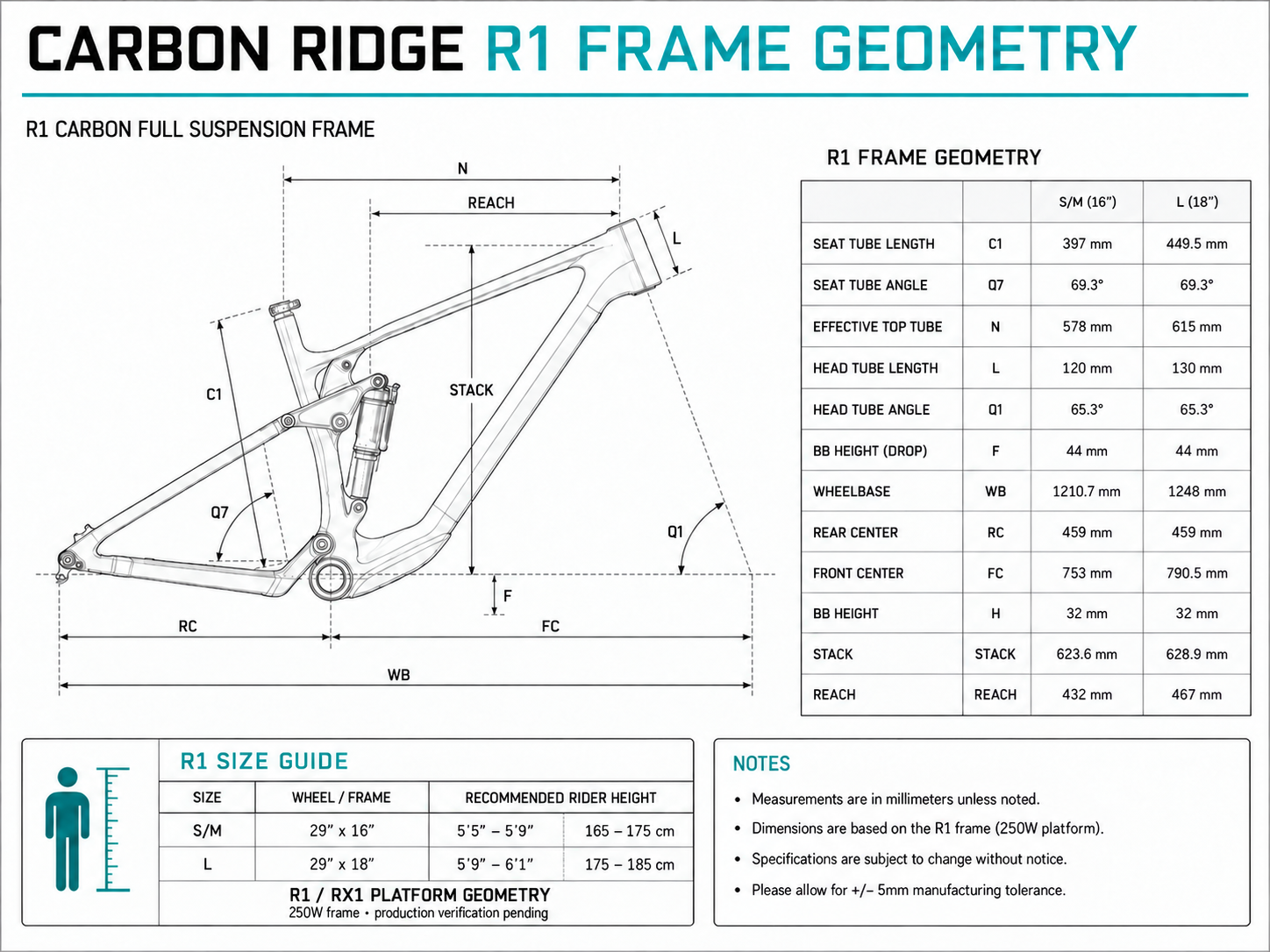

Two practical frame sizes keep the decision clear. Review the supplier drawings, then confirm production fit before ordering.
Carbon Ridge support
Confidence follows the ride.
3Year carbon frame warranty
1Year motor warranty
1Year battery warranty provisional
Final written terms, exclusions and battery coverage will be confirmed before production reservations open.
R1 · RX1 · R2 · RX2
